Selecting the best tool for jack termination

Good tools are prerequisites to the successful execution of a job.

To complete the wiring work, you can use a variety of different tools to achieve the installation, but if you choose non-professional tools, it will waste a lot of time and reduce the quality of construction.

There are many styles of Termination Tools on the market, and each design has its own advantages and disadvantages.

Today I would like to briefly talk about the 110 models of Termination Tools.

They are mainly divided into three categories by their functions.



Category
Pros
Cons

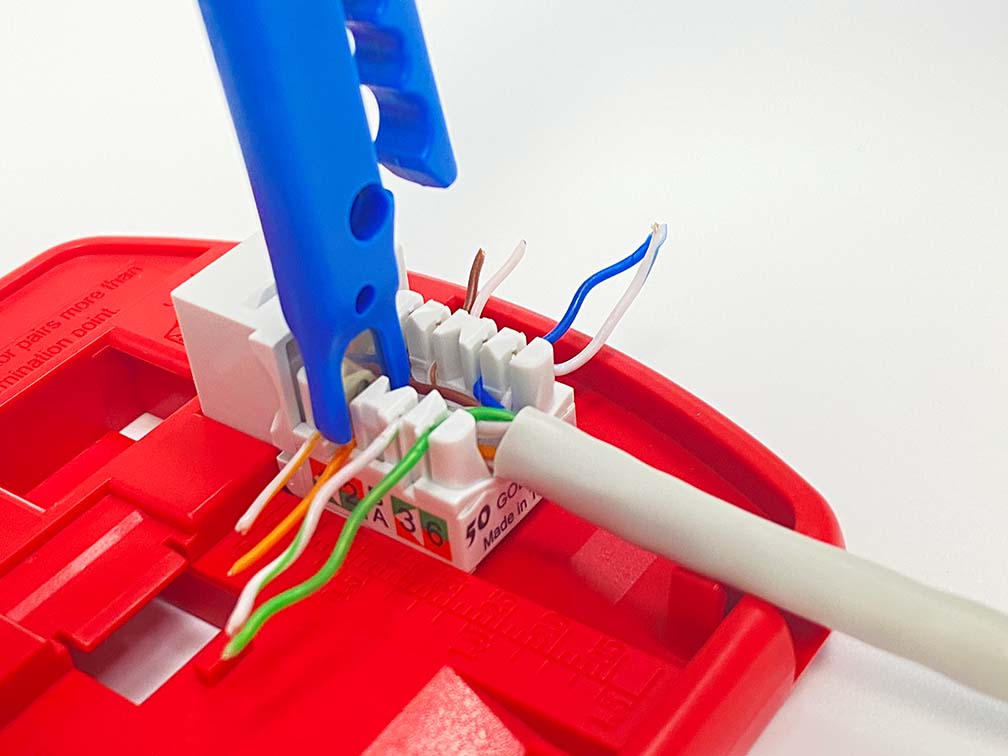

Mini Wire Stripper & Punch Down Tool

1. Cheaper price

2. Easy to get

3. Easy to carry

4. Cable stripping function

1. Need more force when using

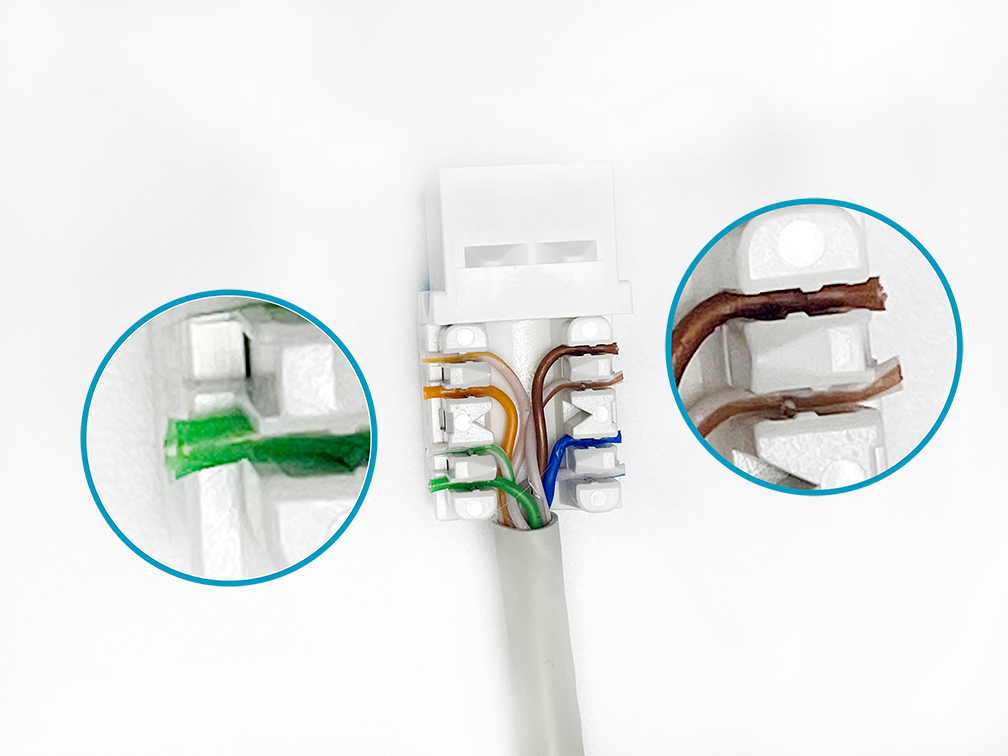

2. Uncontrollable strength when punching down the wire

3. No wire cutting function, it may cause a short circuit if the excess wire is too long

4. Take much time to install pin by pin

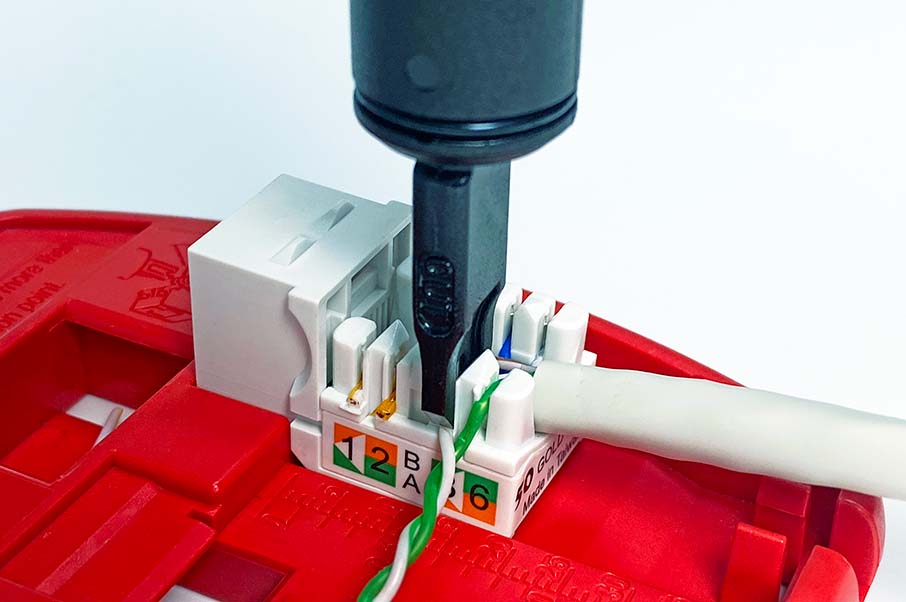

Punch Down Tool



1. Adjustable punch down force

2. Cuts off excess wire and insulation for clean termination to avoid short circuits

3. Better way to ensure the consistency of construction quality

1. Easy to get fatigued when punch down wires pin by pin


2. Take much time to install pin by pin

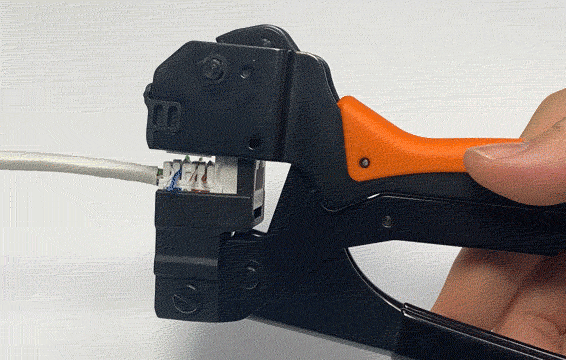

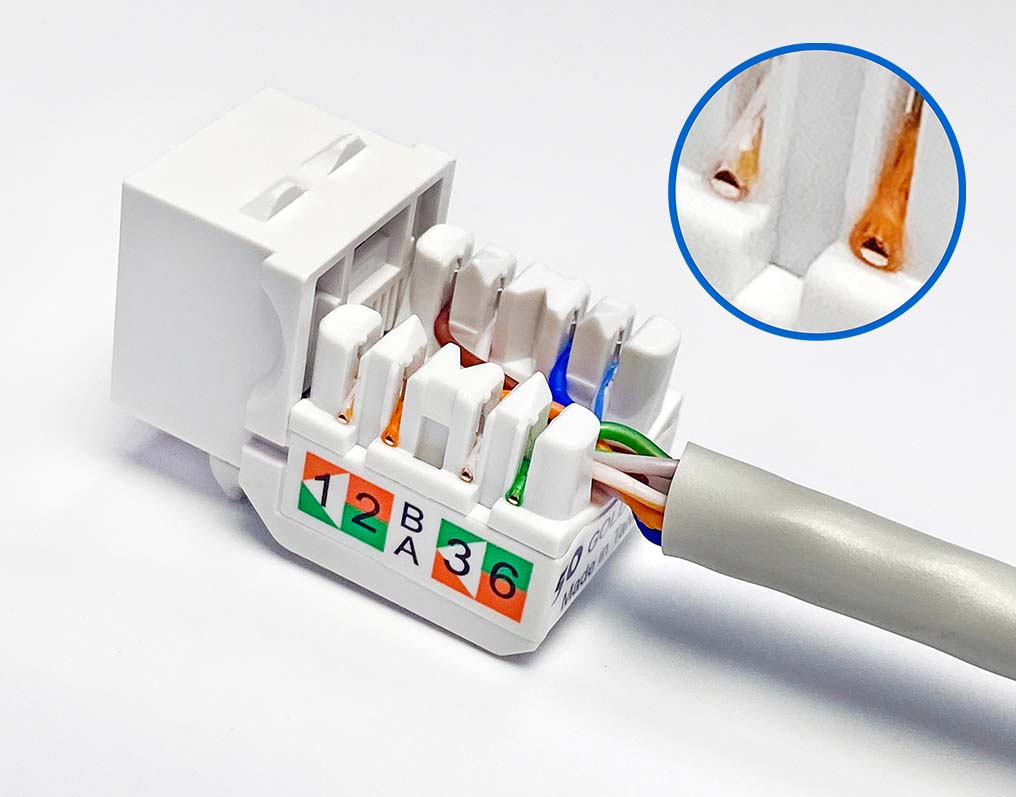

4-Pair Termination Tool

1. Terminates 4 pairs of UTP cable in one squeeze
2. Cuts off excess wire and insulation for clean termination to avoid short circuits

3. Better way to ensure the consistency of construction quality

4. save time and effort

1. Partially designed for dedicated Keystone Jack, not high commonality

2. Less convenient to carry due to product size

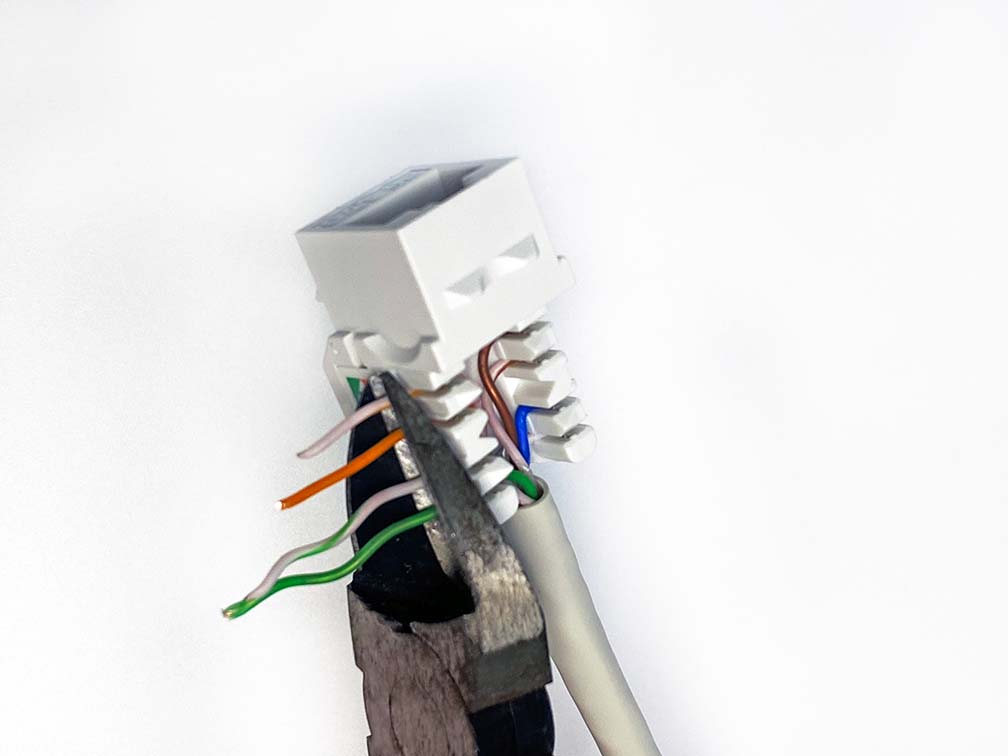

Mini Wire Stripper


Punch Down Tool



4-Pair Termination Tool


How do we choose the appropriate tools?  For a professional construction engineering company, timing and quality are the most important items. If to take these two points into account, the four-pair wire Termination Tool is the most suitable tool.It can easily and quickly let new recruits get started and reduce the rework cost caused by insufficient experience.  If there are other considerations, use Punch Down Tool to ensure the quality of construction.
